Tag: civil

  • Bridge Rehabilitation – Wentworth, NSW

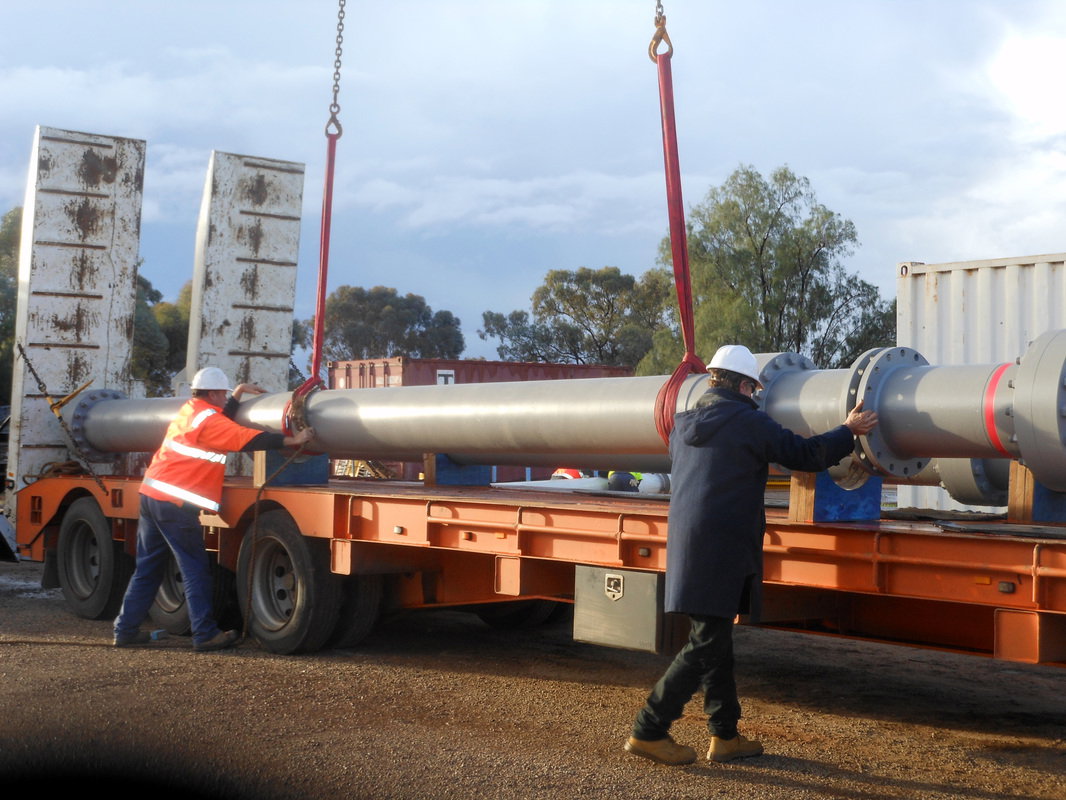

    Bridge Rehabilitation – Wentworth, NSW

    McMillan Engineering Group was contracted to improve the existing seal design and manufacture four single acting displacement cylinders.

    • Ø355.6mm Bore
    • Ø340mm Rod – Hard chrome plated
    • 6839mm Stroke
    • 31 bar Operating pressure
    • 282kN Extension force
    • Paint specification to suit environment

  • Port Miami Tunnel Project

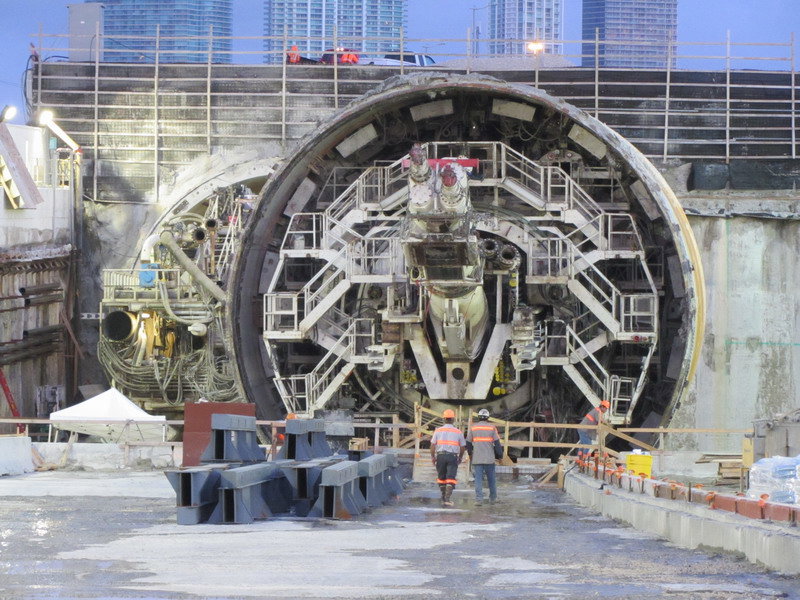

    Port Miami Tunnel Project

    The Port Miami Tunnel Project formed two 1.2km, 2 lane tunnels to form an alternative link to Dodge Island via the MacArthur Causeway on Watson Island. McMillan Engineering Group supplied eight 300T double acting safe rams to facilitate the lifting of the 13.1m diameter tunnel boring machines. Via the use of internal porting we were able to design these rams with 150mm stroke and only 430mm closed height.

    Specifications

    • 301T Lifting capacity @ 690 bar
    • 150mm Stroke
    • 600T Capacity mechanical lock ring
    • Double acting
    • Spherical load cap
    • 430mm Closed height
    • NATA Force Calibration

  • Urban Superway Project – Adelaide

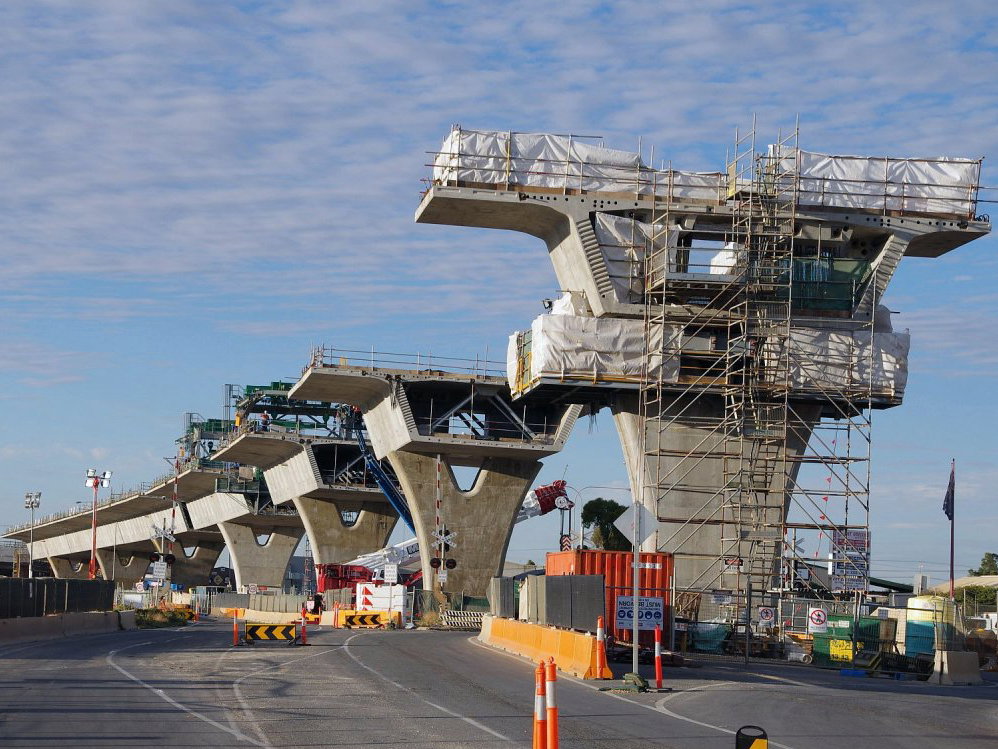

    Urban Superway Project – Adelaide

    McMillan Engineering Group were contracted to design, manufacture and supply a wide range of custom cylinders, power units and hydraulic accessories for the Urban Superway Project in Adelaide, South Australia.

    Cylinder Details

    IHS PE554 HPU

    • Quantity supplied – 10
    • Single acting, load return
    • 100T Capacity
    • 690 bar Operating pressure
    • 75mm Stroke
    • Ø50mm Centre hole

    2.625×2-300 Spreader Cylinder

    • Quantity supplied – 4
    • Double acting, hydraulic return
    • 25T Capacity (Ext.)
    • 10T Capacity (Ret.)
    • 690 bar Operating pressure
    • 300mm Stroke

    IHS-0100-04-LR-SR

    • Quantity supplied – 4
    • Double acting, hydraulic return
    • 25T Capacity (Ext.)
    • 10T Capacity (Ret.)
    • 690 bar Operating pressure
    • 300mm Stroke

    20T Adjustment Cylinder

    • Quantity supplied – 16
    • Single acting, load return
    • 20T Capacity
    • 690 bar Operating pressure
    • 11mm Stroke

    IHS-0250-10-LR-SR

    • Quantity supplied – 8
    • Single acting, load return
    • 258T Capacity
    • 690 bar Operating pressure
    • 250mm Stroke
    • Mechanical lock ring
    • Flat load cap

    IHS-0100-02-LR-SR

    • Quantity supplied – 26
    • Single acting, load return
    • 100T Capacity
    • 690 bar Operating pressure
    • 50mm Stroke
    • Mechanical lock ring
    • Spherical load cap

    IHS-CH-0060-03-LR-SR

    • Quantity supplied – 4
    • Single acting, load return
    • 62T Capacity
    • 690 bar Operating pressure
    • 75mm Stroke
    • Ø50mm Centre hole
    • Mechanical lock ring

    Pump Details

    IHS PE554 HPU

    • 4-way Valve
    • Remote control
    • Bleed down valve
    • 0.84 kW
    • 690 bar
    • 0.92 lpm
    • 8.6 litre Reservoir

    PE172-50-220 Electric Pump

    • 2-way Valve
    • Remote control
    • 0.37 kW
    • 690 bar
    • 0.262 lpm
    • 4.8 litre Reservoir

    Hand Pump

    • Two speed
    • 2-way Valve
    • 0.0029 litres per stroke
    • 690 bar
    • 1 litre reservoir

    Hydraulic Accessories

    • 4″ Analogue gauges
    • Needle valves
    • 6m 3/8″ Jacking hoses
    • 3m 3/8″ Jacking hoses
    • 1.8m 3/8″ Jacking hoses
    • 1.2m 3/8″ Jacking hoses
    • 1 into 2 Manifolds
    • 1 into 4 Manifolds
    • Gauge adaptors
  • HDD Recycle Unit – Melbourne

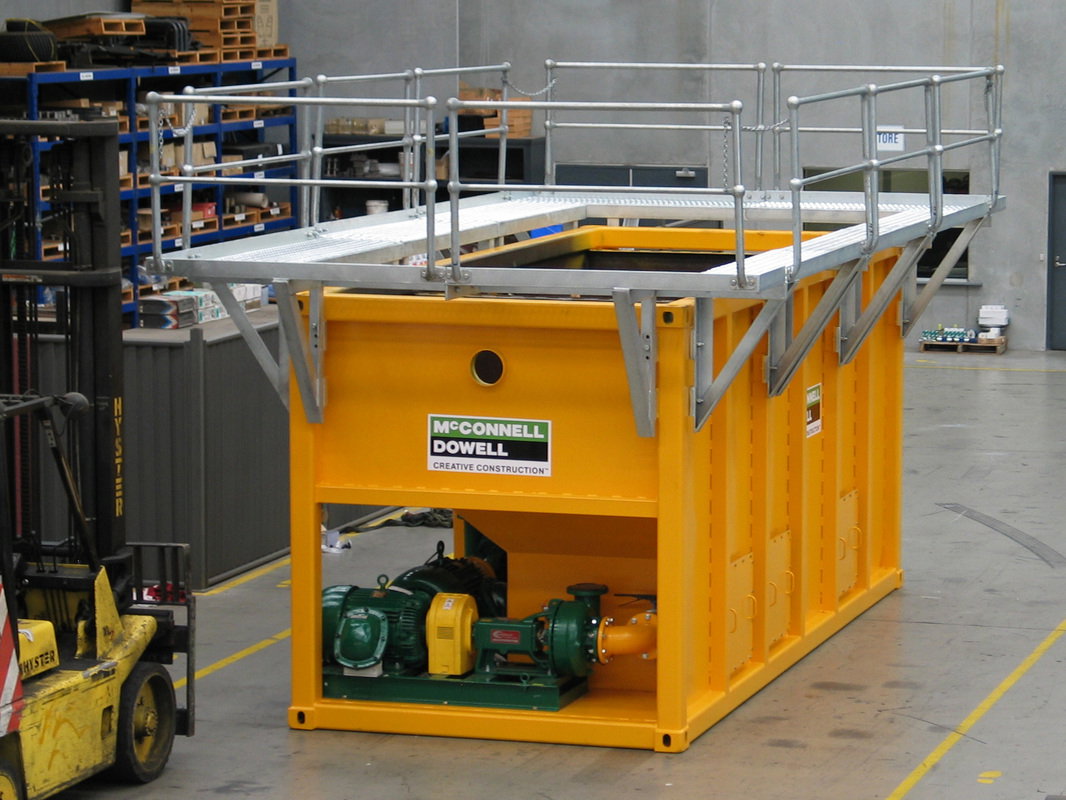

    HDD Recycle Unit – Melbourne

    Slurry separation system featuring three Derrick linear motion screens, a round desilter, and horizontal cone desander for efficient solids control.

    Slurry separation device incorporating:

    • 3 Derrick linear motion screens
    • Round desilter
    • Horizontal cone desander

  • Double Bowl Grout Pump with Colloidal Mixers

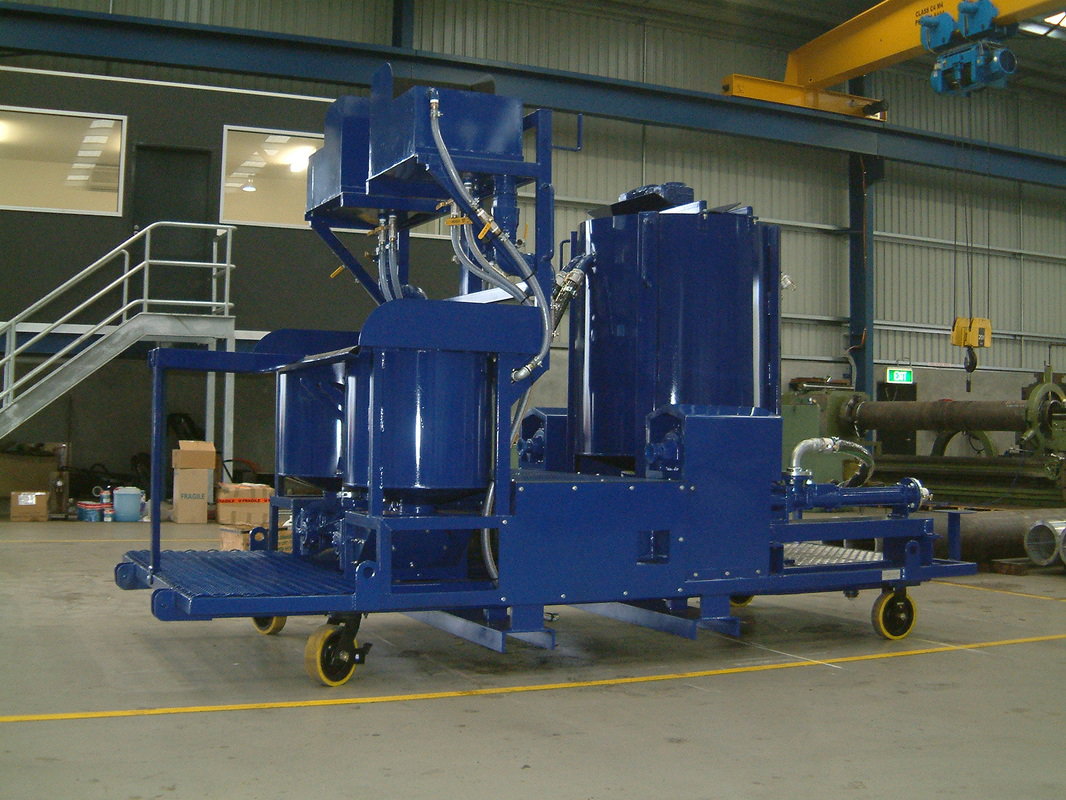

    Double Bowl Grout Pump with Colloidal Mixers

    High-performance double bowl grout pump with integrated colloidal mixers for efficient, uniform grout production and delivery.

  • Gateway Upgrade – Brisbane

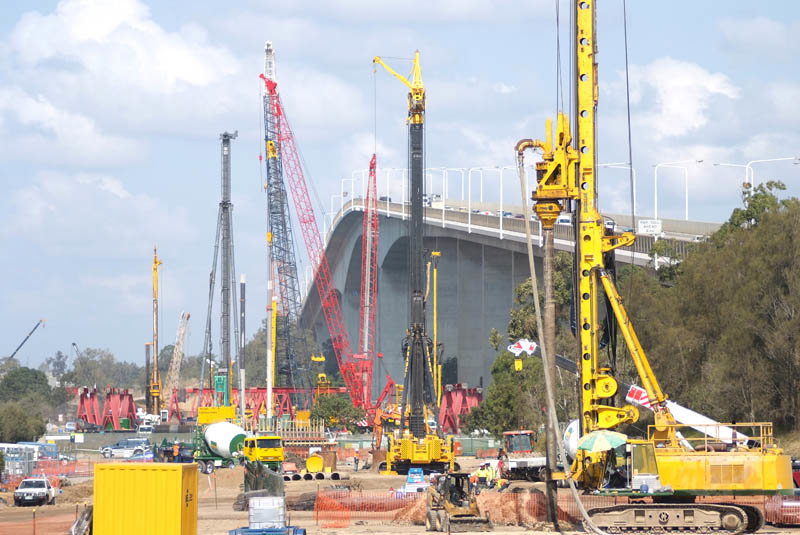

    Gateway Upgrade – Brisbane

    Hydraulic stress bed engineered for the Gateway Upgrade in Brisbane, delivering high-capacity structural testing and controlled load application.

    Photo courtesy of Leighton Abigroup Joint Venture

  • M7 Project – Sydney

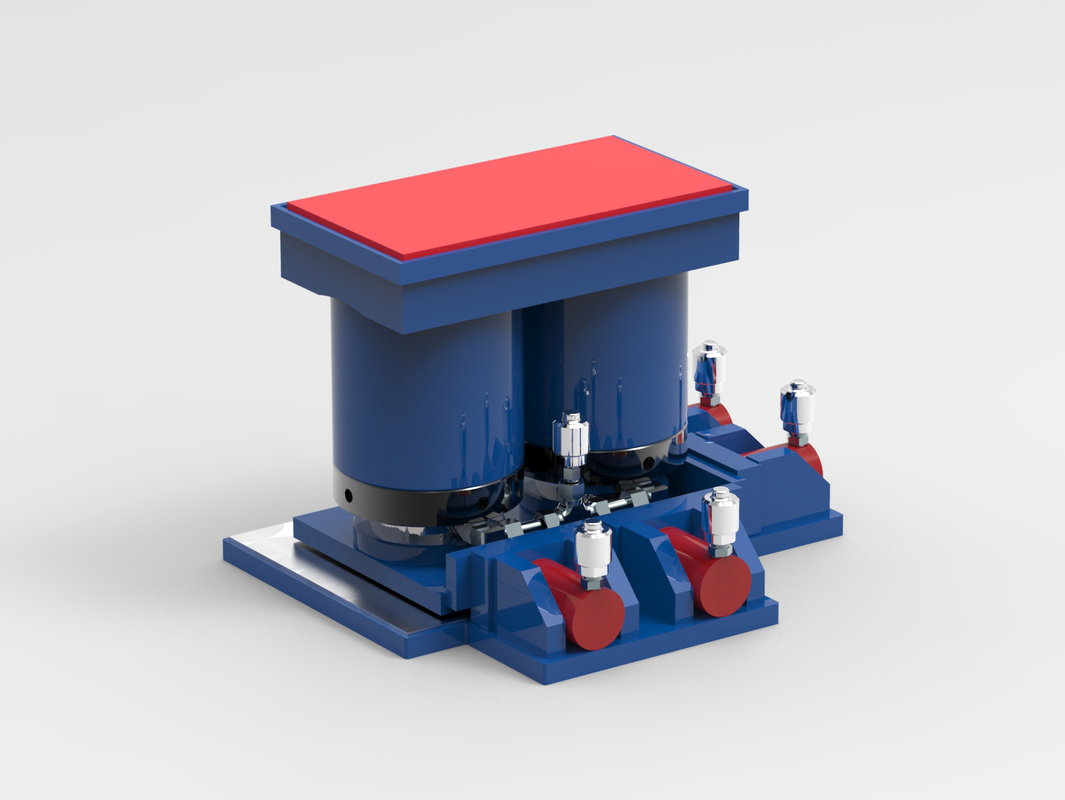

    M7 Project – Sydney

    McMillan Engineering Group, then trading as Industrial Hydraulic Services designed, manufactured and supplied span jacks for the M7 Project in Sydney, NSW.

    Details:

    16 x 200T Span Jacks

    • Twin jack design
    • 100mm Stroke
    • Mechanical lock ring
    • Spherical load cap
    • Polyurethane load pad
    • Teflon/stainless sliding base
    • Side shift cylinders in two directions

    24 x IHS-0125-05-LR-SR

    • To suit 200T span jack frame to increase capacity to 250T and stroke to 135mm
    • 125T Capacity
    • 135mm Stroke
    • Mechanical lock ring
    • Spherical load cap
    • Polyurethane load pad
    • Teflon/stainless sliding base
    • Side shift cylinders in two directions

  • Custom Multi-Strand Jack & Hydraulic Power Unit

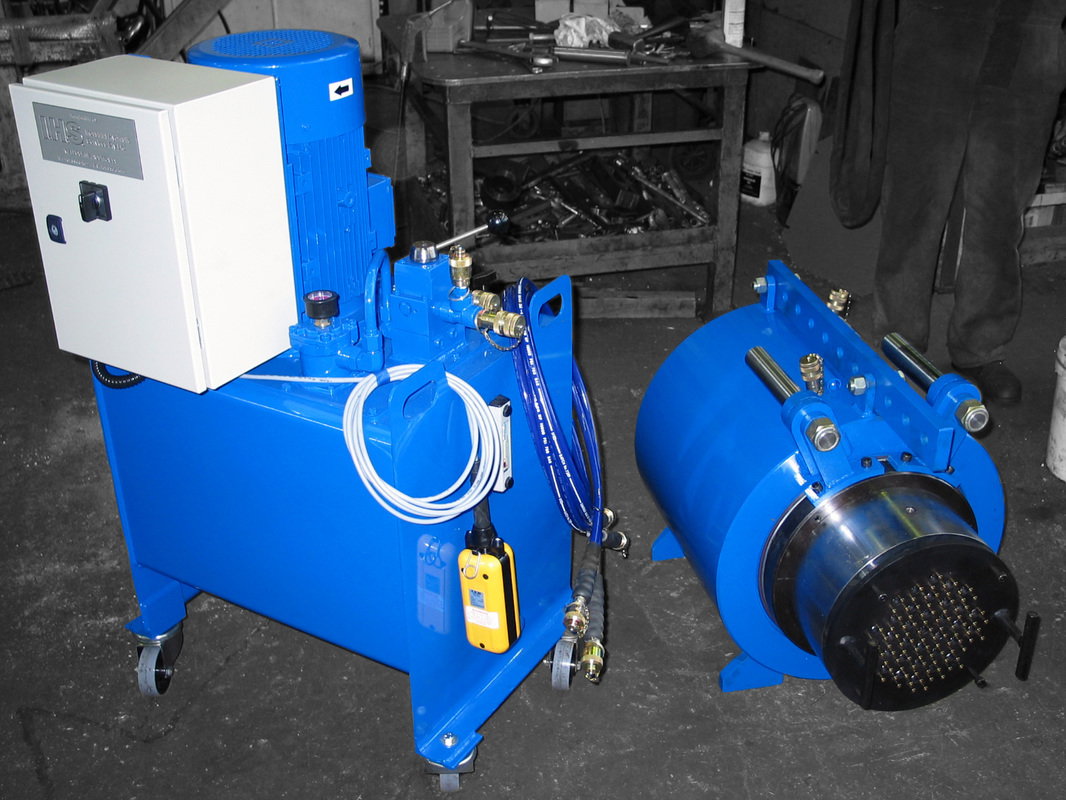

    Custom Multi-Strand Jack & Hydraulic Power Unit

    Delivery ready for one of our pre-stressing customers. Custom designed and manufactured to meet their specific requirements.

    Custom IHS-CH-0630-08-DA

    • 630T Capacity
    • 690 bar Working pressure
    • 206mm Stroke
    • Ø230mm Centre hole
    • 33 x 0.6” Strand battery set including – Nose, shaker plate, tube bundle, back block
    • Chrome plated multi-strand wedges
    • NATA Force calibration

    Custom Hydraulic Power Unit

    • 5.5kW/415V
    • 700 bar
    • 3.2lpm

  • Bai Chay Bridge Project – Vietnam

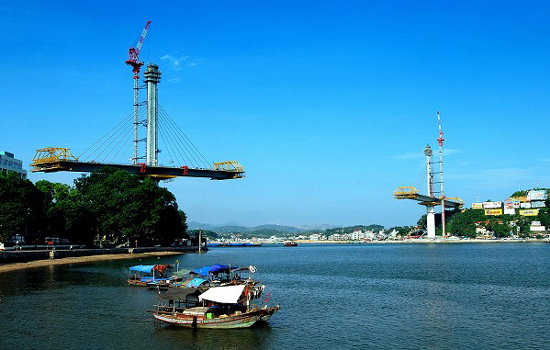

    Bai Chay Bridge Project – Vietnam

    The Bai Chay Bridge connects Hong Gai with Bai Chay over the Cua Luc Straits. Industrial Hydraulic Services designed, manufactured and supplied a large range of hydraulic equipment for the Form Travellers used on this project.


    Photo courtesy of Nadsanti Lertpiriyakamol

    3kW Hydraulic Power Unit

    • Quantity – 4
    • 3kW / 3-Phase
    • 2 outlets with 1.2 lpm @ 700 bar
    • 2 outlets with 2.9 lpm @ 300 bar
    • Lowering valves
    • 40 litre Reservoir
    • Canopy

    65×35-800 Cylinder

    • Quantity – 16
    • 6.2T Capacity (Ext)
    • 3.3T Capacity (Ret)
    • 800mm Stroke
    • 250 bar Operating pressure
    • Double acting

    IHS PE554 HPU

    • Quantity – 5
    • 0.84 kW / 220 V / 50 Hz / 1P
    • 0-700 bar / 11.5-0.92 L/min
    • 8.6 litre Reservoir
    • Bleed down valve

    65×35-300 Cylinder

    • Quantity – 16
    • 6.2T Capacity (Ext)
    • 3.3T Capacity (Ret)
    • 300mm Stroke
    • 250 bar Operating pressure
    • Double acting

    IHS-0220-10-SR

    • Quantity – 8
    • 220T Capacity
    • 250mm Stroke
    • 700 bar Operating pressure
    • External spring retract
    • Mechanical lock ring

    65×35-650 Cylinder

    • Quantity – 16
    • 6.2T Capacity (Ext)
    • 3.3T Capacity (Ret)
    • 650mm Stroke
    • 250 bar Operating pressure
    • Double acting

    IHS-0150-06-SR

    • Quantity – 8
    • 150T Capacity
    • 150mm Stroke
    • 700 bar Operating pressure
    • Load return
    • Mechanical lock ring

    70×45-500 Cylinder

    • Quantity – 16
    • 10T Capacity (Ext)
    • 6.4T Capacity (Ret)
    • 500mm Stroke
    • 280 bar Operating pressure
    • Double acting

    IHS-CH-075-04-DA

    • Quantity – 8
    • 75T Capacity
    • 100mm Stroke
    • Ø42mm Centre hole
    • 700 bar Operating pressure
    • Double acting
    • Pressure relief valve

    Crane Wheel

    • Quantity – 16
    • Ø400mm
    • 35T Capacity
    • SKF Bearings

    Accessories

    • 192m of Hose assemblies per traveller
    • 3 Manifold assemblies per traveller
    • Couplings & connectors for turn key operation

  • My Thuan Bridge Project – Vietnam

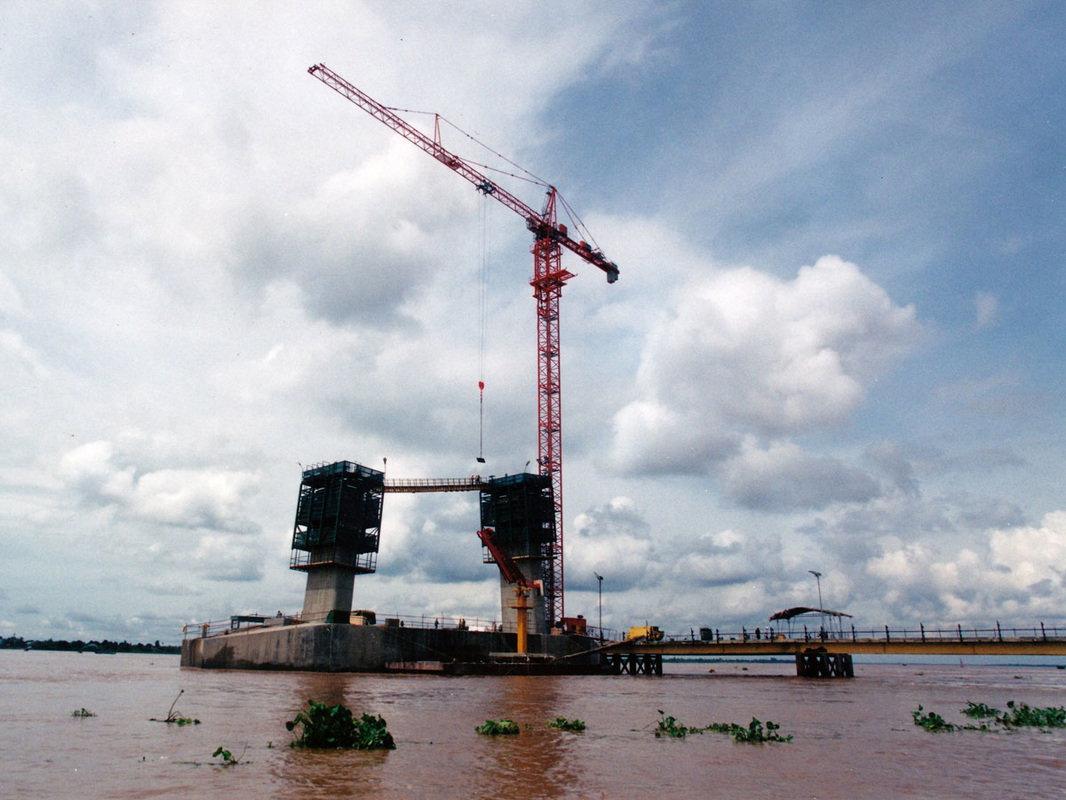

    My Thuan Bridge Project – Vietnam

    The My Thuan bridge is a cable stay bridge over the Mekong River in Vietnam. McMillan Engineering Group designed, manufactured and supplied heavy lift equipment to raise the super tee girders. The bridge spans over 1.5km and with 37m clearance.

    Heavy Lift Cylinders

    • 40T Capacity @ 185 bar
    • 750mm Stroke
    • Ø101mm Centre hole
    • Hydraulic de-wedging at both ends
    • Load lowering safety valve
    • 4 x 15.2mm (0.6″) strands

    Traversing Cylinders

    • Double acting, push/pull action
    • 1m stroke

    Hydraulic Power Unit

    • 415V, 3-Phase, 15kW
    • Pressure compensated lower pressure piston pump to operate the Heavy Lift Cylinders
    • Gear pump to operate the Traversing Cylinders
    • 200 litre Reservoir

    Control Panel

    • 3 x Directional control valves to operate the Heavy Lift Cylinders, Hydraulic de-wedging & the Traversing Cylinders
    • 1 x Pressure compensated speed control valve
